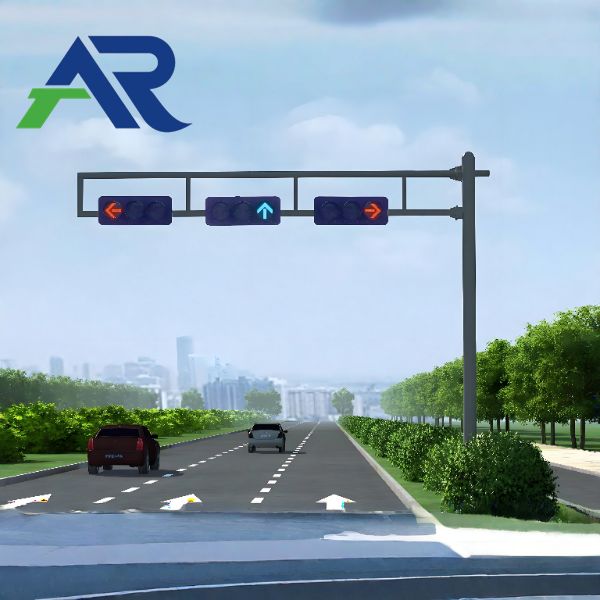

Traffic sign poles are essential components of road infrastructure, serving as support structures for various types of traffic signs that convey important information to drivers and pedestrians. These poles are strategically placed along roadways to provide guidance, regulate traffic flow, and enhance overall safety on the roads.
Traffic sign poles come in different shapes and sizes, depending on the type of sign they support and the location where they are installed. Some poles are straight and vertical, while others may have curved or angled designs to accommodate specific signage configurations. The materials used for traffic sign poles vary, with steel, aluminum, and composite materials being common choices due to their strength, durability, and resistance to weather conditions.
In urban areas, traffic sign poles are often seen at intersections, crosswalks, and parking lots, displaying signs such as stop signs, yield signs, pedestrian crossing signs, and parking regulations. These poles play a crucial role in regulating traffic behaviors and promoting pedestrian safety.
Product Advantages

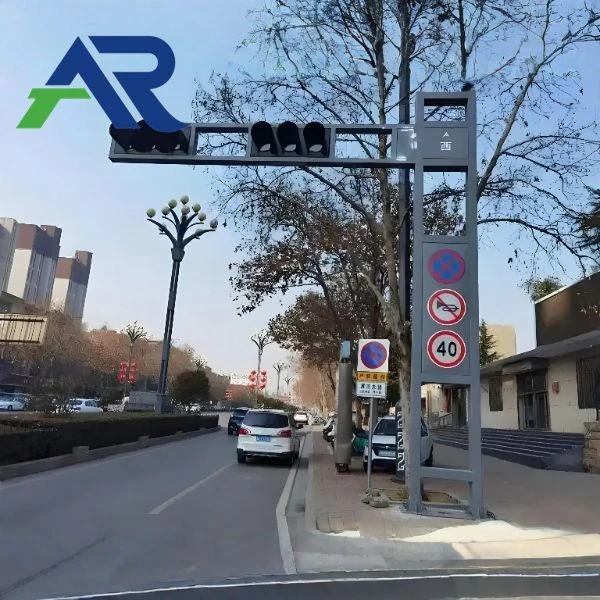

Traffic signal pole types is made of high-strength Q355B steel or 6063-T6 aluminum alloy, and is hot-dip galvanized (zinc layer ≥85μm) + polyester powder spraying double anti-corrosion process. It has a wind resistance level of 12, seismic fortification intensity of 8, and a service life of up to 25 years. The structure complies with GB/T 23827 standards, the wall thickness of the tapered pole body is 8-14mm, and the flange pre-embedded positioning error is ≤2mm. It can carry signal lights, electronic police, radar speed meters and other equipment, and the load capacity is 40% higher than that of traditional poles. The surface is covered with Class III reflective film, with a nighttime visibility of 500 meters, effectively reducing the accident rate at intersections.
|
Structure Type |
Cantilever/Dry Type/Gantry Style |
Load Capacity |
Supports multiple signal lights + surveillance devices |
|
Wind Resistance |
Class 12 Wind Load |
Corrosion Life |
Hot-dip galvanizing ≥85μm |
|
Height Range |
5m-12m |
Application Sites |
Intersections, highway toll stations, tunnel entrances |
|
Hape |
Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
|
Material |
Q235,Q345,Iron,Steel,Aluminum |
|
Brackets/ Arm |
Single or double brackets/ arm are in the shape and dimension as per customers requirement |
|
Welding |
It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international |
|
Thickness |
1.8mm-20mm |
|
Surface treatment |
Hot dip galvanization |
|
Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement |
|
Wind resistance |
Customized,according to customer's environment |
|
Powder coating |
Pure polyester powder painting, color is optional according to RAL Color stardand |
|
Customized/Design Service |
Yes |
|
Type |
Product |
Upper/Bottom (MM) |
THK(MM) |
Flange(MM) |
|
1 |
6M Pole |
70/135 |
2.75 |
260*12 |
|
2 |
6M Bent Arm Pole |
58/145 |
2.75 |
260*12 |
|
3 |
7M Pole |
70/150 |
2.75 |
260*12 |
|
4 |
7M Bent Arm Pole |
58/160 |
2.75 |
300*12 |
|
5 |
8M Pole |
70/158 |
3 |
300*12 |
|
6 |
8M Bent Arm Pole |
58/160 |
3.5 |
300*12 |
|
7 |
9M Pole |
80/185 |
3.5 |
320*14 |
|
8 |
9M Bent Arm Pole |
58/170 |
3.5 |
320*14 |
|
9 |
10M Pole |
78/185 |
3.75 |
350*16 |
|
10 |
10M Bent Arm Pole |
58/190 |
3.75 |
350*16 |
|
11 |
11M Pole |
80/200 |
4 |
400*18 |
|
12 |
11M Bent Arm Pole |
58/190 |
4 |
400*18 |
|
13 |
12M Pole |
80/215 |
4.5 |
400*20 |
|
14 |
12M Bent Arm Pole |
60/205 |
4.5 |
400*20 |
|
All street lamp products can be made according to customer requirements |
||||
The shape is usually an octagonal conical light pole, which is made of high-strength steel plate cutting, bending and automatic welding. The general height is 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, and the maximum wind resistance design can reach 60 meters per second.
In terms of functional frame, the decorative materials are also mainly steel, and the steel pipes, lamp poles and arms are hot-dip galvanized.
Surface spraying powder coating or any other standard required by customers
The lamp post is formed in one go by a large bending machine, and is divided into circular, octagonal, square, dodecagonal, hexagonal, etc. It is treated with hot-dip galvanizing and can be used for more than 20 years
All lamp posts shall be welded using high standard requirements, which require no spatter, full welding, no missed welding, and no undercutting. Q235B steel plate or equivalent grade steel plate shall be used, and the lamp posts shall be manufactured reasonably in accordance with customer drawings.
According to customer requirements, the lamp post can be powder coated, and the color can be customized. Reasonable customer requirements are acceptable, and OEM is acceptable ODM.
The packaging of the lamp post is made of felt fabric or other reasonable packaging, customized according to customer requirements, and the integrity of the lamp post is protected to reach the customer's location.
