Your Professional Factory Chimney Supplier
Tengshida (Hebei) Environmental Engineering Co., Ltd.Founded in 2015, Tengshida (Hebei) Environmental Engineering Co., Ltd. is headquartered in Hengshui City, Hebei Province. Our company specializes in the field of environmental engineering and is committed to providing solutions and services for environmental protection, sewage treatment, waste gas treatment, solid waste treatment, and related areas.Main Products Self-supporting chimneys, tower chimneys, sleeve chimneys, cluster chimneys, stainless steel chimneys, and fiberglass chimneys.
Our Certifications
The company holds 10 national patents, including several invention patents. We have passed ISO9001 Quality Management System and ISO14001 Environmental Management System certifications.
Production Market
Key customers include
- China ENFI Engineering Technology Co., Ltd.
- Sinochem Environment Atmospheric Governance Co., Ltd.
- Saiding Engineering Co., Ltd.
- China Railway 21st Bureau Group Second Engineering Co., Ltd.
- Sinopec Shanghai Engineering Co., Ltd.
- Taiyuan Boiler Group Electric Power Engineering Co., Ltd.
Our Service
Our after-sales service department consists of 3 dedicated personnel. Services include product installation guidance, technical support, system debugging, and training.
Service methods: Remote support, phone assistance, or on-site guidance.
Warranty period: As specified in the contract (12 to 36 months).
|
Product Name |
FRP Chimney |
|
Keywords |
Frp Grp Chimney |
|
Product Material |
FRP/GRP |
|
Color |
Green/Blue or Customized |
|
Surface Treatment |
Smooth Surface |
|
Technology |
Winding |
|
Product Length |
Customized Length |
|
Thickness |
Customized Thickness |
|
Shape |
Customized Shape |
|
Feature |
High Quality Corrosion Resistant |
|
Processing Service |
Decoiling, Moulding, Cutting |
|
Advantage |
Compression Resistance/Anti-corrosion/Fire Prevent |
|
Sample |
Not Supported |
|
Logo Custom |
Accept |
|
MOQ |
1 Meters |
|
Height |
40M-180M |
|
Diameter |
1400mm-3500mm |
|
Temperature |
Above 150ºC |
|
Thickness |
6mm-28mm |
|
Material |
Anti-corrosion paint |
Outstanding Corrosion Resistance. As We All Know, Chimneys Made Of Traditional Materials Have Poor Corrosion Resistance, Especially The Scrubbed And Treated Exhaust Gas, Which Has More Serious Corrosion On Chimneys, So Excellent Corrosion Resistance Is More Important For The Use Of Chimneys.
Strong Designability. There Are Many Types Of Main Raw Materials For FRP And Various Molding Processes. Therefore, FRP Material Itself Has Strong Designability.
Fast Installation, FRP Material With Low Density And Light Weight
Excellent Product Functions, FRP Products Have High Specific Strength, And Can Fully Meet The Various Mechanical Function Requirements Required By The Chimney
Low Cost And Good Benefits. FRP Chimneys Do Not Need Anti-Corrosion Treatment During Construction, The Overall Design Is Better Than Chimneys Made Of Traditional Materials, And The Construction Period Is Shorter
Structure
Inner lining layer
Also known as the anti-seepage and anti-corrosion layer. Plays a key role in preventing seepage and corrosion in pipelines. The inner surface layer is formed by 90% resin and 10% surface felt. The thickness of the inner lining layer is 1.5-2.5mm depending on the diameter and pressure of the pipeline. Transition layer: formed by two layers of shortcut felt and 75+5% resin. The function is to prevent the occurrence of capillary phenomenon
Structural layer
This layer is a fiber winding layer, which is the key to product strength. The resin content is 30+5%. Quartz sand is added to this layer to improve the stiffness of the pipeline, and its thickness depends on the external force.
Protective layer
Also known as the outer protective layer. This layer is the outermost layer of the pipeline, which is composed of 100% resin. Its purpose is to prevent the buried pipeline from being eroded by corrosive media in the soil. In addition, toughening agents and anti-aging agents are added in this layer, which can resist the aging of the pipeline and increase its service life. Its thickness is generally 0.25-0.5mm.

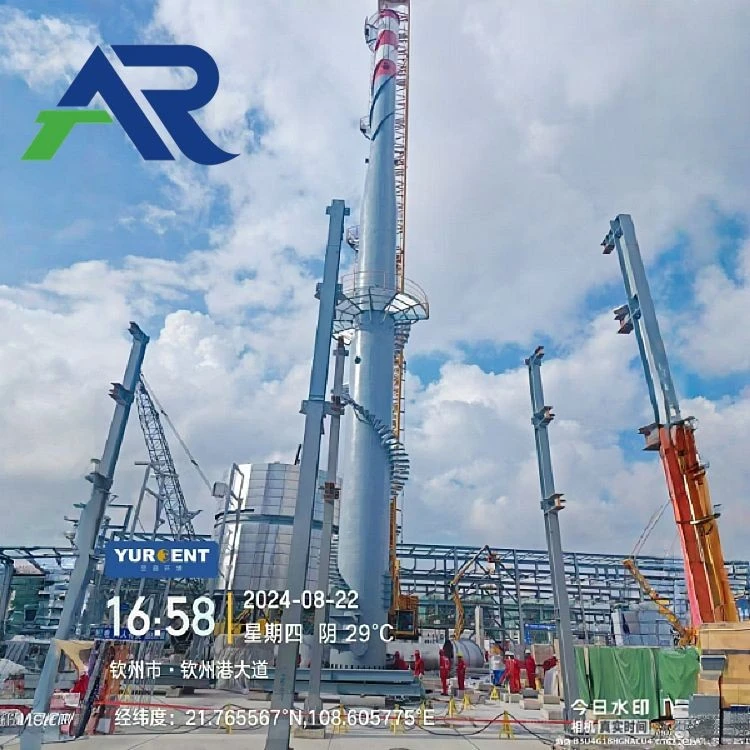

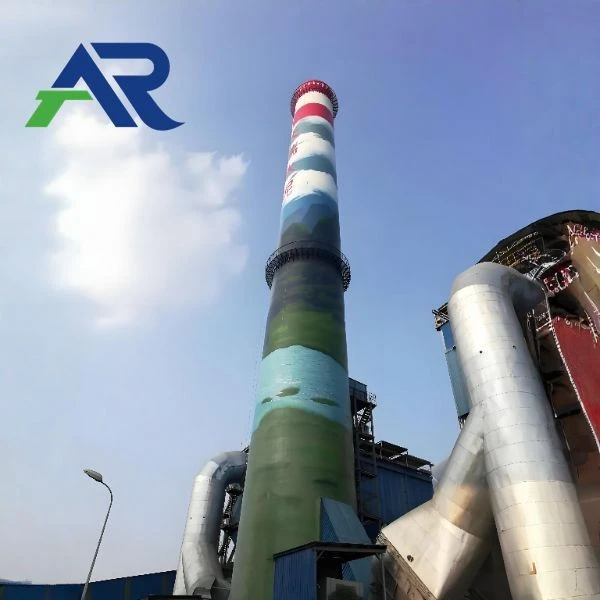

Industrial Steel Chimney, be apply to power plant, industrial boiler, chemical plant, waste incineration gas exhaust system. Compare to concrete chimney, steel chimney can have good appearance, excellent corrosion resistance, space saving and easy installation. Each steel chimney is designed according to the customer`s special requirements and demands, and the design is based on the national standards in force and the project specifications.
Attention to Quality Issues in Chimney Anti-Corrosion
Uneven Surface and Inaccurate Elevation
These issues are often caused by inaccurate horizontal elevation stakes or insufficient care during leveling operations.
Poor Concrete Compaction
This is mainly due to missed vibration, inadequate compaction, or incorrect mix proportions.
Irregular Surface Cracks
- First, these may result from wind-induced cracking of the surface coating, often due to failure in pressing and polishing the original slurry.
- Second, poor construction of the 3:7 lime-soil cushion layer or insufficient compaction during the backfilling of the fertilizer trench can cause cracking. Proper pre-construction inspection and concealment work are essential.
Inconsistent Color Between Side and Main Surface
This is mainly due to delayed mold removal. The side that is applied later appears different in color compared to the main surface that was applied earlier. Mold removal timing must be carefully controlled.
Improper Filling and Contamination of Dividing Joints
When filling with asphalt mortar, the process must be meticulous. To prevent contamination, both sides of the dividing joints can be covered. The mortar inside the joints must be leveled and compacted smoothly.
Protection Measures in Chimney Anti-Corrosion
Protect the Exterior Wall
If necessary, use wooden boards for covering to prevent damage.
Avoid Contamination
It is strictly prohibited to mix mortar on completed surfaces to avoid contaminating the exterior walls and surrounding areas.
Controlled Maintenance Period
During the curing and maintenance phase, assign dedicated personnel to keep the sawdust moist through regular watering. Unauthorized access should be strictly prohibited during the early stage.
Our Certificate
As one of the leading factory chimney manufacturers and suppliers in China, we warmly welcome you to buy high quality factory chimney for sale here from our factory. Good service and reasonable price are available.
